Model Whirlpool 1346^0A GAS RANGE – Common Parts & Diagrams
08 - OVEN DOOR

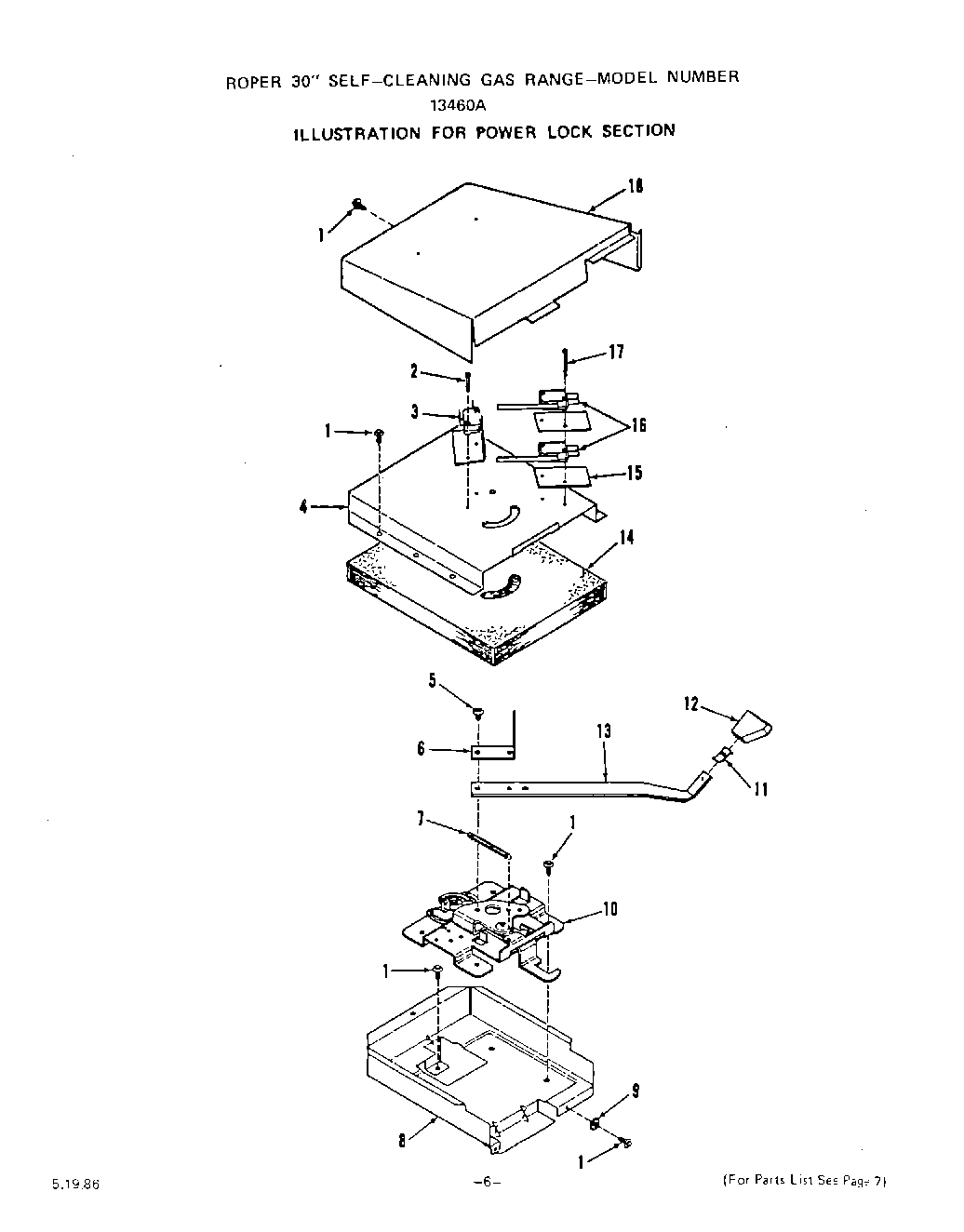

04 - POWER LOCK

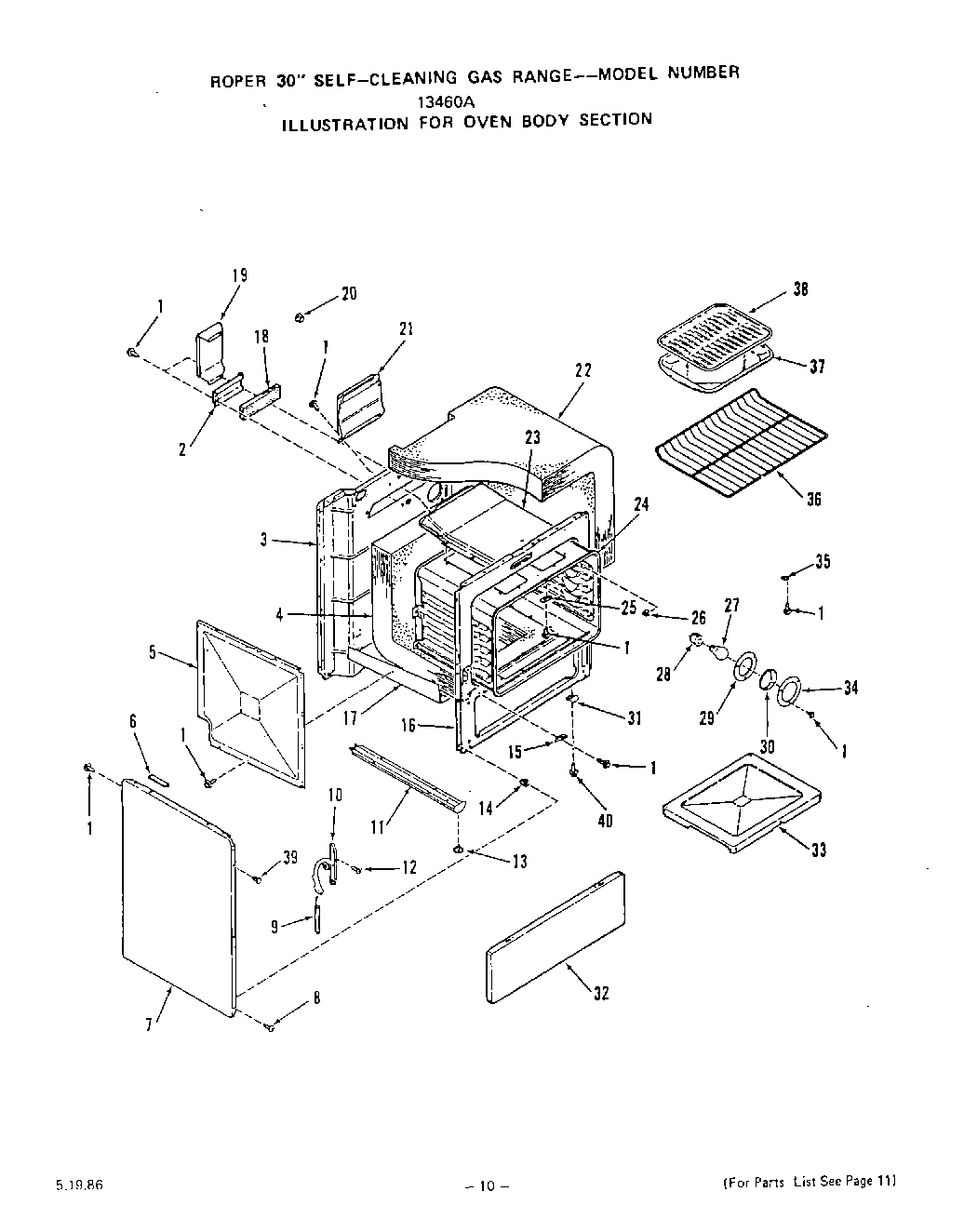

06 - OVEN BODY

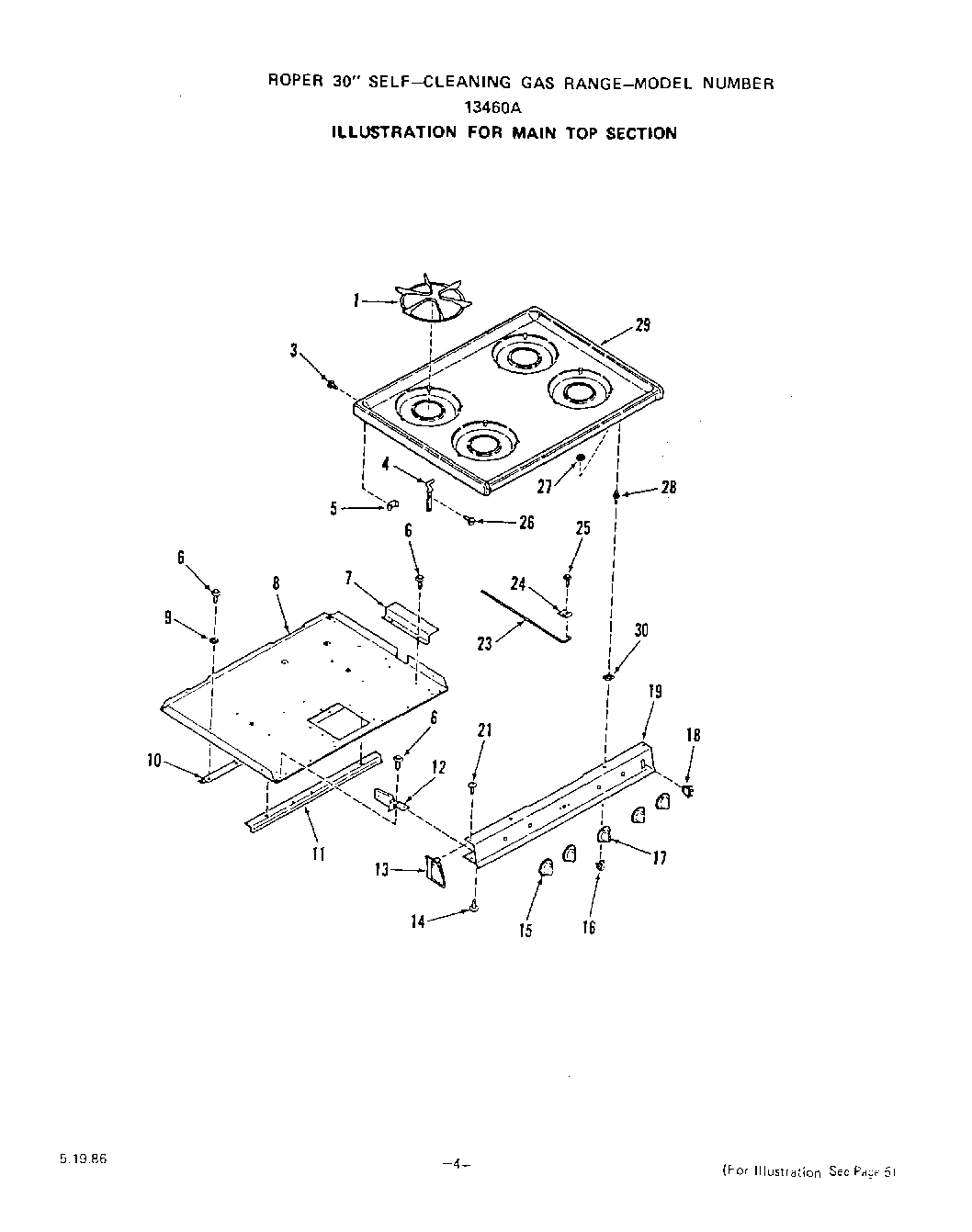

03 - MAIN TOP

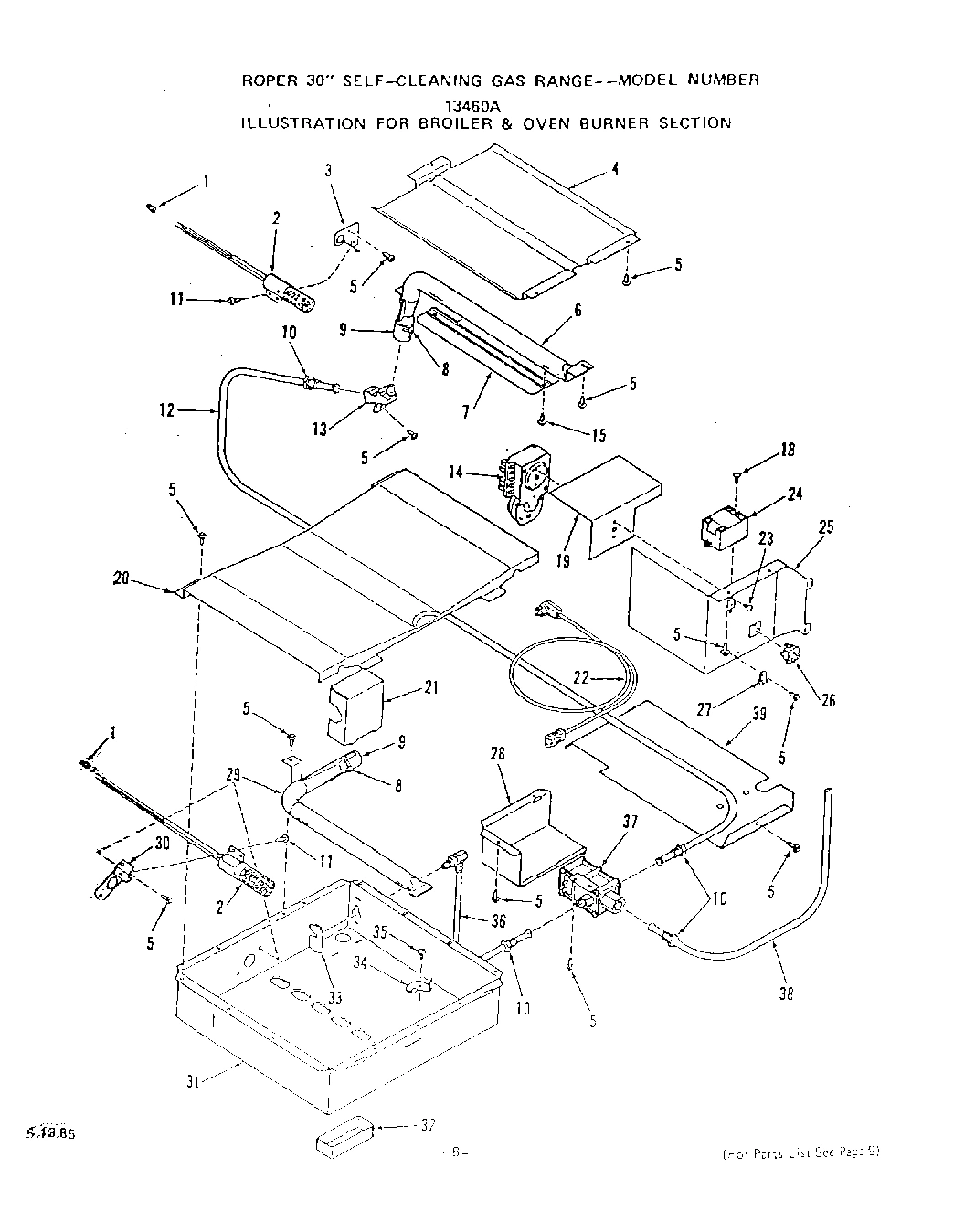

05 - BROILER AND OVEN BURNER
07 - TOP BURNER

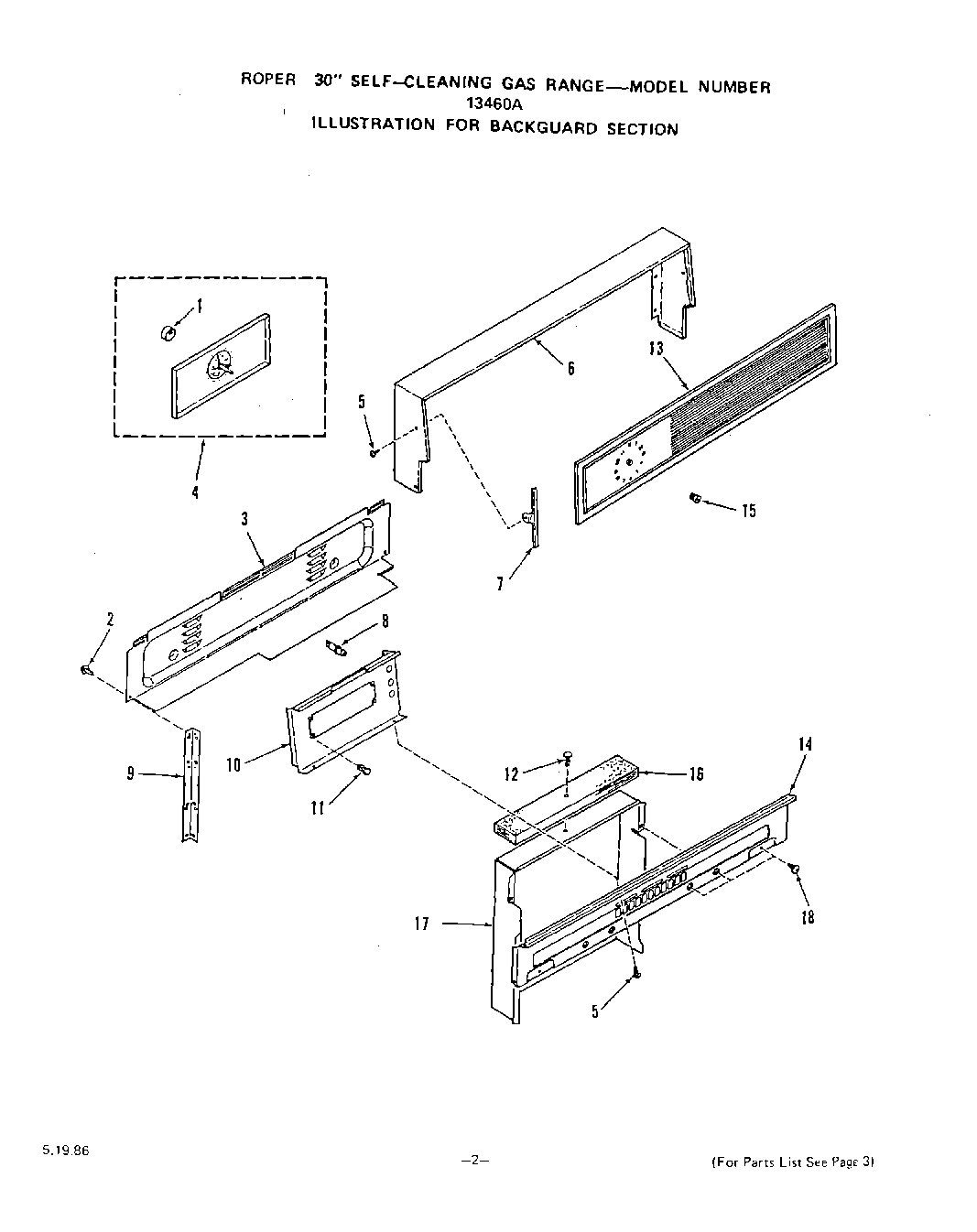

02 - BACKGUARD

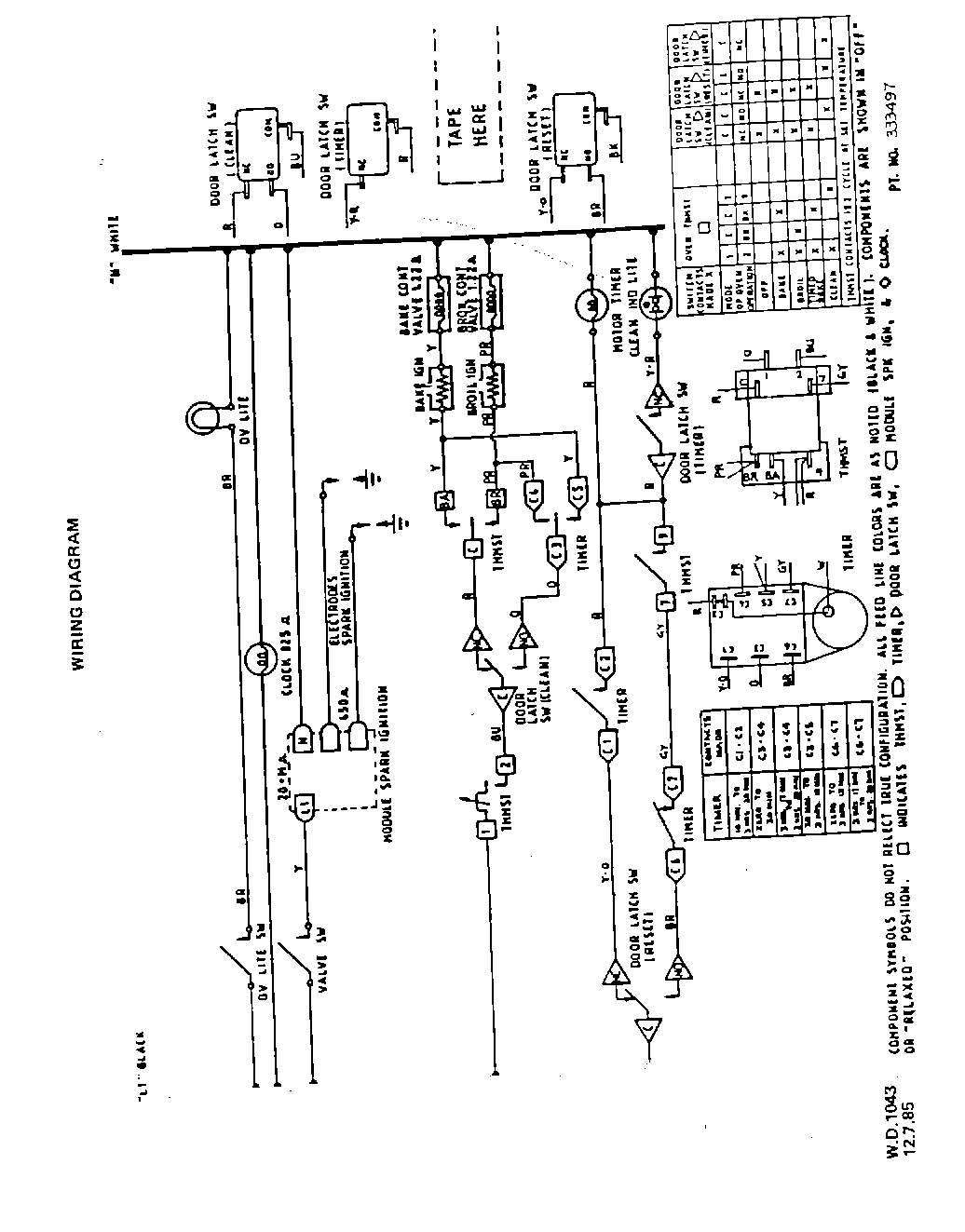

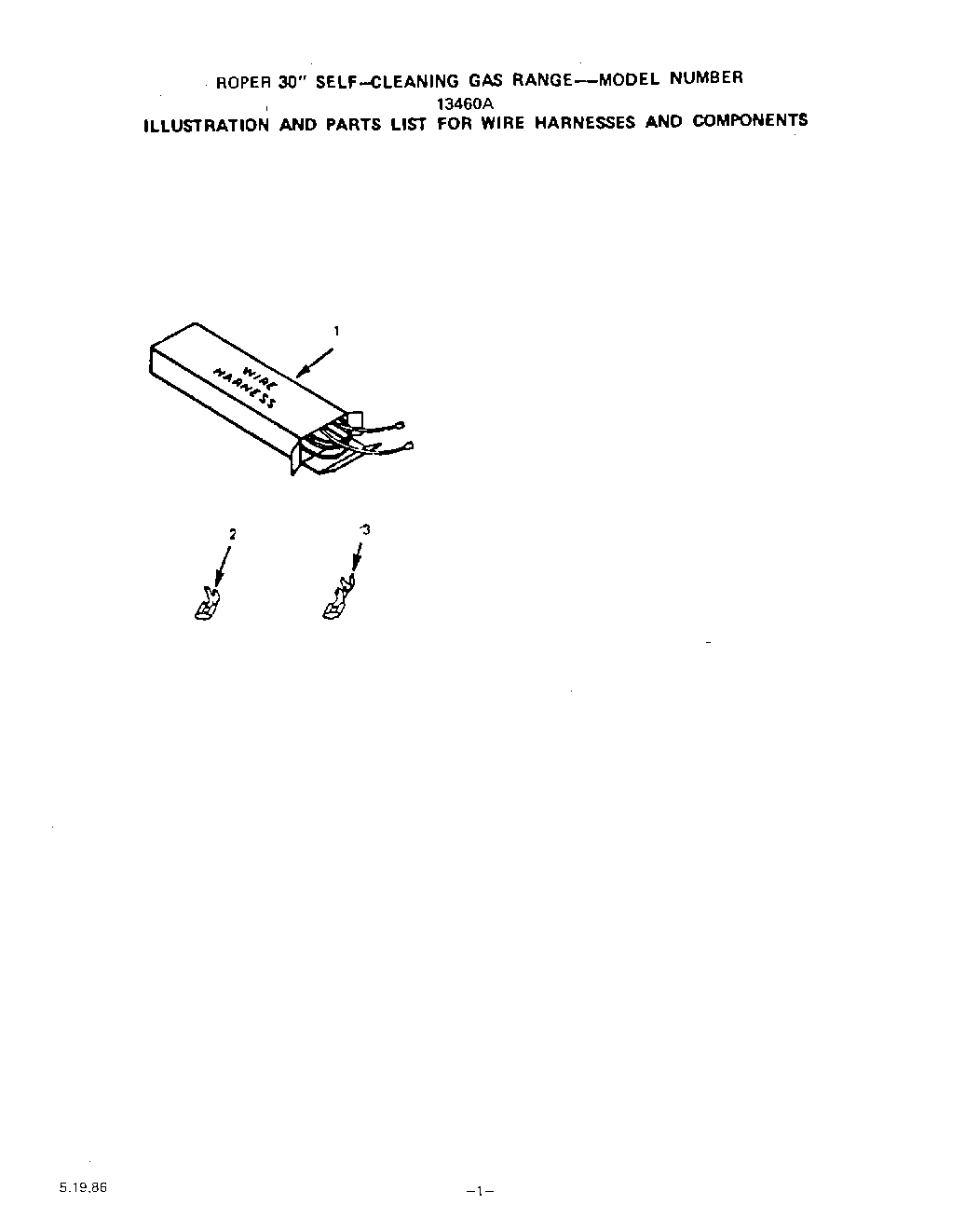

01 - WIRE HARNESS
10 - SECTION
Common parts from model Whirlpool 1346^0A GAS RANGE
1
Screw 10-16x7/16`` WPL 327320 Contact Us For Availability
1
Top Grate (4 Req) WPL 316786 Contact Us For Availability
1
Wire Connector WPL 103595 Contact Us For Availability
1
Motor-Clock WPL 283296 Contact Us For Availability
1
Igniter WPL 329162 Contact Us For Availability
1
Switch-Gas Valve WPL 329364 Contact Us For Availability
1
Main WPL 333492 Contact Us For Availability
1
Backguard WPL 333496 Contact Us For Availability
1
Wire Harness WPL ARI8074A92 Contact Us For Availability
2
Rear Top Burner-Rt. or Lt. (Inc`s. Key 4) WPL 327075 Contact Us For Availability
2
Igniter-Broiler & Oven Burner WPL 319887 Contact Us For Availability
2
Screw 4-40x11/16`` WPL 328956 Contact Us For Availability
2
Wire Shield WPL 327809 Contact Us For Availability
2
Flag Terminal 1/4`` WPL STD374251 Contact Us For Availability
3
Front Top Burner-Rt. or Lt. (Inc`s.Key 4) WPL 327074 Contact Us For Availability
3
Screw-10-32x1/2`` WPL 316849 Contact Us For Availability
3
Bracket-Broiler Burner Igniter WPL 327804 Contact Us For Availability
3
Wire Cover-Backguard WPL 329352 Contact Us For Availability
3
Micro Switch WPL 329170 Contact Us For Availability
3
Main Back WPL 330167 Contact Us For Availability
3
Faston Terminal WPL ARI8075A81 Contact Us For Availability
4
Air Shutter (4 Req) WPL 327198 Contact Us For Availability
4
Right WPL 320921 Contact Us For Availability
4
Left WPL 320922 Contact Us For Availability
4
Hinge-Main Top WPL ARI8076A83 Contact Us For Availability
4
Baffle-Broiler Burner WPL 327807 Contact Us For Availability
4
Clock (Inc`s. Key 1) WPL 333498 Contact Us For Availability
4
Cover-Lock Box WPL 328486 Contact Us For Availability
4
Insulation-Oven Back & Bottom (1 Piece) WPL 329146 Contact Us For Availability
5
Right WPL 329462 Contact Us For Availability
5
Left WPL 329464 Contact Us For Availability
5
Electrode-Spark Igniter WPL ARI8083A49 Contact Us For Availability
5
bracket-main top hinge (lt. or rt.) WPL 327403 Contact Us For Availability
5
Screw 6-20x3/8`` WPL 327621 Contact Us For Availability
5
Screw 10-24x1/4`` WPL 288248 Contact Us For Availability
5
Retainer-Insulation (Lt. or Rt.) WPL 328959 Contact Us For Availability
6
Support-Top Burner (Lt. or Rt.) WPL 327073 Contact Us For Availability
6
Broiler Burner (Inc`s. Keys 7, 8, 9, 15) WPL 330163 Contact Us For Availability
6
Frame-Backguard WPL 329345 Contact Us For Availability
6
Extension-Handle WPL 334590 Contact Us For Availability
6
Spacer-Main Top (2 Req) WPL 326914 Contact Us For Availability
7
Bracket-Spark Igniter (Lt. or Rt.) WPL 312453 Contact Us For Availability
7
Raceway WPL 329841 Contact Us For Availability
7
Baffle WPL 328660 Contact Us For Availability
7
End Trim-Backguard Glass (Lt. or Rt.) WPL 316351 Contact Us For Availability
7
Spring WPL 313075 Contact Us For Availability
7
White WPL 326055 Contact Us For Availability
7
Almond WPL 326059 Contact Us For Availability
7
Body Side (Lt. or Rt.) WPL ARI8080A47 Contact Us For Availability
8
Pressure Regulator WPL 324528 Contact Us For Availability
8
Bottom-Burn Box WPL 331574 Contact Us For Availability
8
Adjustment Screw -Air Shutter WPL 312989 Contact Us For Availability
8
Indicator Light-Clean WPL 296317 Contact Us For Availability
8
Lock Box WPL 328489 Contact Us For Availability
8
Screw 8ABx5/8`` WPL 314124 Contact Us For Availability
9
Mounting Screw 1/4-20 WPL 311455 Contact Us For Availability
9
Washer WPL 106462 Contact Us For Availability
9
Air Shutter WPL 312988 Contact Us For Availability
9
Support-Backguard (Lt. or Rt.) WPL 319361 Contact Us For Availability
9
Washer WPL 21067 Contact Us For Availability
9
Spring-Oven Door (Lt. or Rt.) WPL 326964 Contact Us For Availability
10
Inverted Nut 3/8`` WPL 113384 Contact Us For Availability
10
Stiffener-Burner Box Bottom (Rear) WPL 329158 Contact Us For Availability
10
Mounting Bracket-Clock WPL 329349 Contact Us For Availability
10
Latch Assm. (Inc`s. Key 7) WPL 328656 Contact Us For Availability
10
Right WPL 326012 Contact Us For Availability
10
Left WPL 326013 Contact Us For Availability
10
Hinge-Oven Door WPL ARI8081A24 Contact Us For Availability
11
Shut Off Valve WPL 326830 Contact Us For Availability
11
stiffener-burner box bottom (front) WPL 327705 Contact Us For Availability
11
Tubular Clip (4 Req.) WPL 293577 Contact Us For Availability
11
Clip-Knob WPL 328474 Contact Us For Availability
11
Base w/Levelers-Lt. or Rt. WPL 334811 Contact Us For Availability
12
Rubber Gasket WPL 313563 Contact Us For Availability
12
Left WPL 328808 Contact Us For Availability
12
Right WPL 328924 Contact Us For Availability
12
Bracket-Manifold Panel WPL ARI8077A35 Contact Us For Availability
12
Tubing 3/8`` (Control Valve to Broiler Orific WPL 286823 Contact Us For Availability
12
Dart Button WPL 296097 Contact Us For Availability
12
Knob-Lock WPL 328475 Contact Us For Availability
12
Screw WPL 331704 Contact Us For Availability
13
Manifold Pipe WPL 329539 Contact Us For Availability
13
Right WPL 328498 Contact Us For Availability
13
Left WPL 328499 Contact Us For Availability
13
Cap-Manifold Panel End WPL ARI8078A49 Contact Us For Availability
13
Broiler Orifice Fitting WPL 331992 Contact Us For Availability
13
Glass-Backguard WPL 335025 Contact Us For Availability
13
Handle-Latch WPL 333710 Contact Us For Availability
13
Leg Levelers (4 Req) WPL 326052 Contact Us For Availability
14
Rubber Gasket WPL 311692 Contact Us For Availability
14
Timer WPL 328350 Contact Us For Availability
14
Front-Backguard Bottom WPL 331020 Contact Us For Availability
14
Insulator-Latch WPL 328472 Contact Us For Availability
15
Thermostat-Oven WPL 328279 Contact Us For Availability
15
Screw 8 - 32x3/8`` WPL 97217 Contact Us For Availability
15
Knob-Gas Valve (4 Req) WPL 334355 Contact Us For Availability
15
Knob-Clock WPL 294810 Contact Us For Availability
15
Insulator-Switch (3 Req) WPL 329171 Contact Us For Availability
15
Catch-Lo Frt Pnl (2 Req) WPL 331122 Contact Us For Availability
16
Catch-Main Top Strike (2 Req) WPL 24667 Contact Us For Availability
16
Insulation-Flue Box WPL 329834 Contact Us For Availability
16
Micro Switch WPL 329169 Contact Us For Availability
16
Front Frame WPL 332680 Contact Us For Availability
17
Shield-Thermostat WPL 329839 Contact Us For Availability
17
Knob-Thermostat WPL 328806 Contact Us For Availability
17
Shield-Flue Deflector WPL 328487 Contact Us For Availability
17
Screw 4-40 x1 9/16`` WPL 331081 Contact Us For Availability
17
Lower Insulation Retainer WPL 331144 Contact Us For Availability
18
Gas Valve (4 Req) WPL 332001 Contact Us For Availability
18
Screw 10AB WPL 326974 Contact Us For Availability
18
Switch-Oven Light WPL 334357 Contact Us For Availability
18
Screw 6-20x3/8`` WPL 329382 Contact Us For Availability
18
Wire Cover-Latch Switches WPL 328490 Contact Us For Availability
18
Insulation WPL 330166 Contact Us For Availability
19
Switch-Gas Valve (4 Req) WPL 312457 Contact Us For Availability
19
Manifold Panel WPL 333493 Contact Us For Availability
19
Shield WPL 329903 Contact Us For Availability
19
Wire Shield WPL 327808 Contact Us For Availability
20
Baffle-Oven Burner WPL 328480 Contact Us For Availability
20
Bushing WPL 324257 Contact Us For Availability
21
Shield-Orifice Fitting WPL 331864 Contact Us For Availability
21
Flue Deflector WPL 331564 Contact Us For Availability
22
Range Service Cord WPL 332479 Contact Us For Availability
22
Insulation-Oven Top & Sides (1 Piece) WPL 329147 Contact Us For Availability
23
Screw 8-32x3/16`` WPL 78565 Contact Us For Availability
23
Support Rod-Main Top WPL 326066 Contact Us For Availability
23
Flue Box WPL 327781 Contact Us For Availability
24
Clamp WPL 326348 Contact Us For Availability
24
Module-Spark Igniter WPL 320990 Contact Us For Availability
24
Oven Body WPL 331568 Contact Us For Availability
25
Mounting Bracket-Components WPL 329442 Contact Us For Availability
25
Cover WPL 304835 Contact Us For Availability
26
Screw 10-32 x 3/4`` WPL 321162 Contact Us For Availability
26
Disconnect WPL 232150 Contact Us For Availability
26
Clip-Thermostat Bulb (2 Req) WPL 321539 Contact Us For Availability
27
Keps Nut 8-32 WPL 239764 Contact Us For Availability
27
Clip WPL 106767 Contact Us For Availability
27
Oven Lamp Bulb WPL 111257 Contact Us For Availability
28
Strike (2 Req) WPL 299784 Contact Us For Availability
28
Cover-Control Valve WPL 328481 Contact Us For Availability
28
Holder-Oven Lamp Bulb WPL 87883 Contact Us For Availability
29
White WPL 328907 Contact Us For Availability
29
Almond WPL 328911 Contact Us For Availability
29
Main Top WPL ARI8079A69 Contact Us For Availability
29
Oven Burner WPL 333746 Contact Us For Availability
29
Gasket-Lens WPL 229371 Contact Us For Availability
30
Washer (2 Req) WPL 310218 Contact Us For Availability
30
Bracket-Igniter WPL 311689 Contact Us For Availability
30
Lens-Oven Lamp WPL 114989 Contact Us For Availability
31
Bottom-Oven Burner Box WPL 327775 Contact Us For Availability
31
Support-Lo Frt Pnl (2 Req) WPL 331121 Contact Us For Availability
32
Insulation Retainer-Oven Orifice WPL 329279 Contact Us For Availability
32
White WPL 329566 Contact Us For Availability
32
Almond WPL 329570 Contact Us For Availability
32
Lower Front Panel WPL ARI8082A59 Contact Us For Availability
33
Plate-Orifice Fitting WPL 328473 Contact Us For Availability
33
Oven Bottom WPL 331563 Contact Us For Availability
34
Latch-Oven Burner Box Bottom WPL 328479 Contact Us For Availability
34
Retainer-Oven Light Lens WPL 229372 Contact Us For Availability
35
Shoulder Screw WPL 328584 Contact Us For Availability
35
Cover Plate-Thermostat Bulb WPL 237762 Contact Us For Availability
36
Tubing 3/8`` w/Orifice Fitting (Control Valve WPL 331994 Contact Us For Availability
36
Oven Rack WPL 326068 Contact Us For Availability
37
Control Valve WPL 306267 Contact Us For Availability
37
Broiler Pan WPL 331592 Contact Us For Availability
38
Tubing 3/8`` (Control Valve to Shut-Off Valve WPL 280436 Contact Us For Availability
38
Broiler Pan Grid WPL 326297 Contact Us For Availability
39
Shield-Component Wire WPL 331143 Contact Us For Availability
39
Accordian Rivet (Lt. or Rt.) WPL 281160 Contact Us For Availability
× ![]()
